Bimetallic Cable Terminals DTL-22023-02-09
DTL-2 series copper-aluminium cable lug are suitable for transition connection of the circular aluminium,hemicycle-sector aluminium wires,power supply cables in the distribution equipment.The material of aluminium and copper is L3 and T2 respectively.The technology of friction welding is wonderfully adopted. Therefore they have features of strong weld intensity, good nature in electrification resistant galvanic corrosion and long service life.
Specifications

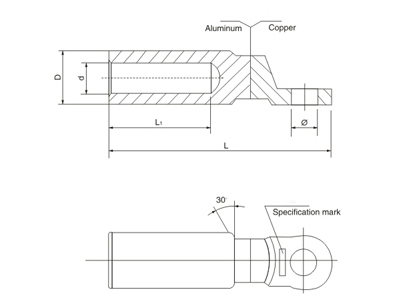

Dimensions(mm)
Code No.
Φ
D
d
L
L1
DTL-2-16
11
16
5.5
80
38
OMU-DTL-2-001
DTL-2-25
11
16
6.5
80
38
OMU-DTL-2-002
DTL-2-35
11
16
8.2
80
38
OMU-DTL-2-003
DTL-2-50
13
20
9.7
91
43
OMU-DTL-2-004
DTL-2-70
13
20
11
91
43
OMU-DTL-2-004
DTL-2-95
13
20
12.5
91
43
OMU-DTL-2-006
DTL-2-120
13
25
14.5
115
60
OMU-DTL-2-007
DTL-2-150
13
25
16.5
115
60
OMU-DTL-2-008
DTL-2-185
13
32
17.5
125
60
OMU-DTL-2-009
DTL-2-240
13
32
19.5
125
60
OMU-DTL-2-010
DTL-2-300
13
34
23
131
61
OMU-DTL-2-011
DTL-2-400
13
34
26.2
131
61
OMU-DTL-2-012
DTL-2-400D
17
40
26.2
165
80
OMU-DTL-2-013
DTL-2-500
17
40
29
165
93
OMU-DTL-2-014
DTL-2-630
17
47
33
181
97
OMU-DTL-2-015
