Bimetallic Cable Terminals DTL-12023-02-09
DTL-1 series copper-aluminium cable lug are suitable for transition connection of the circular aluminium,hemicycle-sector aluminium wires,power supply cables in the distribution equipment.The material of aluminium and copper is L3 and T2 respectively.The technology of friction welding is wonderfully adopted. Therefore they have features of strong weld intensity, good nature in electrification resistant galvanic corrosion and long service life.
Specifications

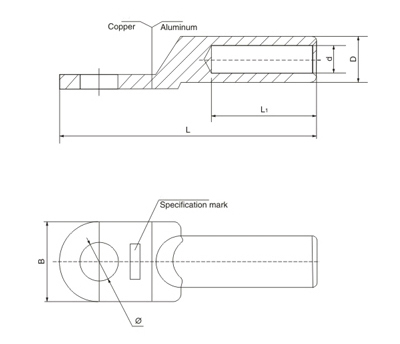

Dimensions(mm)
Code No.
φ
D
d
L
L1
B
DTL-1-10
8.5
10
6
68
28
OMU-DTL-1-001
DTL-1-16
8.5
11
6
70
30
16
OMU-DTL-1-002
DTL-1-25
8.5
12
7
75
34
18
OMU-DTL-1-003
DTL-1-35
10.5
14
8.5
85
38
20.5
OMU-DTL-1-004
DTL-1-50
10.5
16
9.8
90
40
23
OMU-DTL-1-004
DTL-1-70
12.5
18
11.5
102
48
26
OMU-DTL-1-006
DTL-1-95
12.5
21
13.5
112
50
28
OMU-DTL-1-007
DTL-1-120
14.5
23
15
120
53
30
OMU-DTL-1-008
DTL-1-150
14.5
25
16.5
126
56
34
OMU-DTL-1-009
DTL-1-185
16.5
27
18.5
133
58
37
OMU-DTL-1-010
DTL-1-240
16.5
30
21
140
60
40
OMU-DTL-1-011
DTL-1-300
21
34
23.5
160
65
50
OMU-DTL-1-012
DTL-1-400
21
38
27
170
70
50
OMU-DTL-1-013
DTL-1-500
21
47
29
225
75
60
OMU-DTL-1-014
DTL-1-630
21
54
35
245
80
80
OMU-DTL-1-015
DTL-1-800
21
60
38
270
90
100
OMU-DTL-1-016
